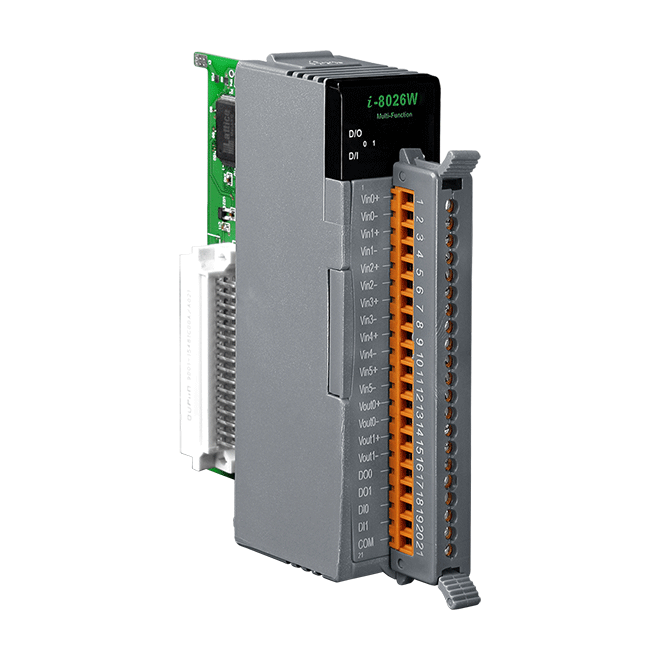

The I-8026W is a multifunction module that includes 6 Analog Input channels, 2 Analog Output channels, 2 Digital Input channels, 2 Digital Output channels. It provides a programmable input range on all Analog Inputs (±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC, ±20 mA (Jumper Select), Analog Outputs are 12-bit at ±10 VDC, ±5 VDC, 0 ~ 10 VDC, 0 ~ 5 VDC, 0 ~ 20 mA. Each analog input can be confi gured for an individual range and provides a high overvoltage protection of 240 Vrms. Voltage and current inputs/outputs are jumper selectable.
Suggested Accessories:
