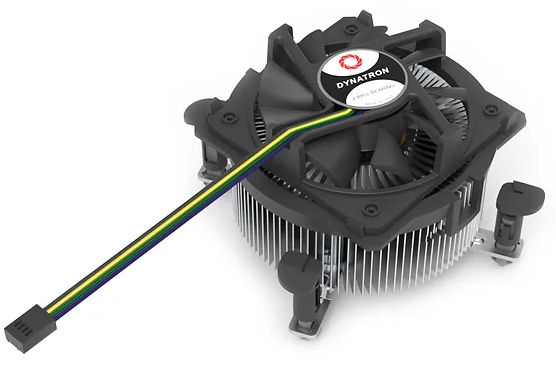

FAN-Q10

CPU Support

Intel

CPU Socket

LGA 1700

Solution

2U Server & Up

Dimensions

106 x 106 x 62 mm

Weight

430 g

Material

Aluminum Radial fin Heat Sink with Copper Core Inserted

Fan Dimension

77 CM Plastic Fan with 4-Pin PWM Connector, 5500RPM

Speed

At Duty Cycle 0~20%: 1000 RPM

At Duty Cycle 50%: 2600 RPM

At Duty Cycle 100%: 5500 RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.54 W

At Duty Cycle 50%: 1.68 W

At Duty Cycle 100%: 9.0 W

Air Flow

At Duty Cycle 0~20%: 8.36 CFM

At Duty Cycle 50%: 25.53 CFM

At Duty Cycle 100%: 53.9 CFM

Noise Level

At Duty Cycle 0~20%: 20.6 dBA

At Duty Cycle 50%: 35.1 dBA

At Duty Cycle 100%: 51.4 dBA

Static Pressure

At Duty Cycle 0~20%: 0.240 mm-H2O

At Duty Cycle 50%: 2.61.250 mm-H2O

At Duty Cycle 100%: 7.60 mm-H2O

Lead Wire Pin Out

Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
