FAN-K199

https://www.cme.co.za/web/image/product.template/9583/image_1920?unique=0e9ecb6

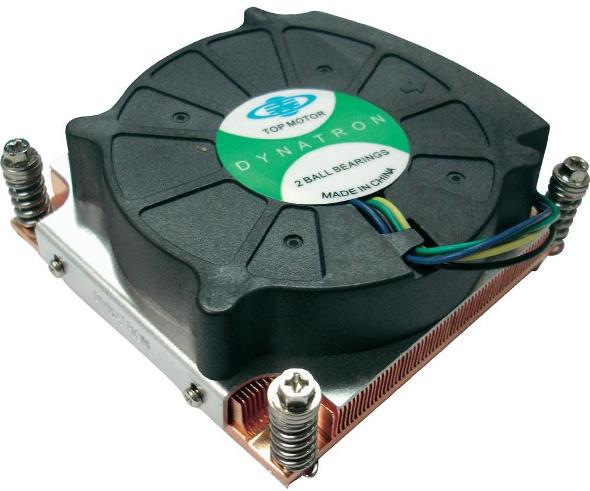

CPU FAN 1U, Socket LGA1150,1151,1155,1156,1200, 125 Watts

£ 38.61 38.61 GBP £ 38.61 Excl. VAT

R 1,065.00 Excl. VAT

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Datasheet

    CPU Support

    Intel

    CPU Socket

    LGA 115X/1200

    Solution

    1U Server

    Dimensions

    85.0 x 81.5 x 28.5mmmm

    Weight

    355g ± 5g

    Material

    Copper Heatsink with Skiving Fins

    Fan Dimension

    Ø80.0 x 15.0 mm

    Speed

    At Duty Cycle 20%: 1200 RPM
    At Duty Cycle 50%: 2600 RPM
    At Duty Cycle 100%: 5000 RPM

    Bearing

    2 Ball Bearing

    Rated Voltage

    12V

    Power

    At Duty Cycle 20%: 0.60 W
    At Duty Cycle 50%: 1.44 W
    At Duty Cycle 100%: 9.60 W

    Air Flow

    At Duty Cycle 20%: 3.533 CFM
    At Duty Cycle 50%: 7.645 CFM
    At Duty Cycle 100%: 14.719 CFM

    Noise Level

    At Duty Cycle 20%: 20.71 dBA
    At Duty Cycle 50%: 37.5 dBA
    At Duty Cycle 100%: 51.7 dBA

    Static Pressure

    At Duty Cycle 20%: 2.083 mm-H2O
    At Duty Cycle 50%: 9.780 mm-H2O
    At Duty Cycle 100%: 36.168 mm-H2O

    Lead Wire Pin Out

    Pin1-Black (-)
    Pin2-Yellow (+)
    Pin3-Green (Techometer/Signal output)
    Pin4-Blue (PWM)
